SY型液压升降搅拌机

SY Hydraulic lift mixers

配置方案

Configurations proposals

Foshan Shuoyu Machinery R&D Co., Ltd.

液压升降搅拌机配置和报价推荐如下：

Mixers configurations and quotation as follows:

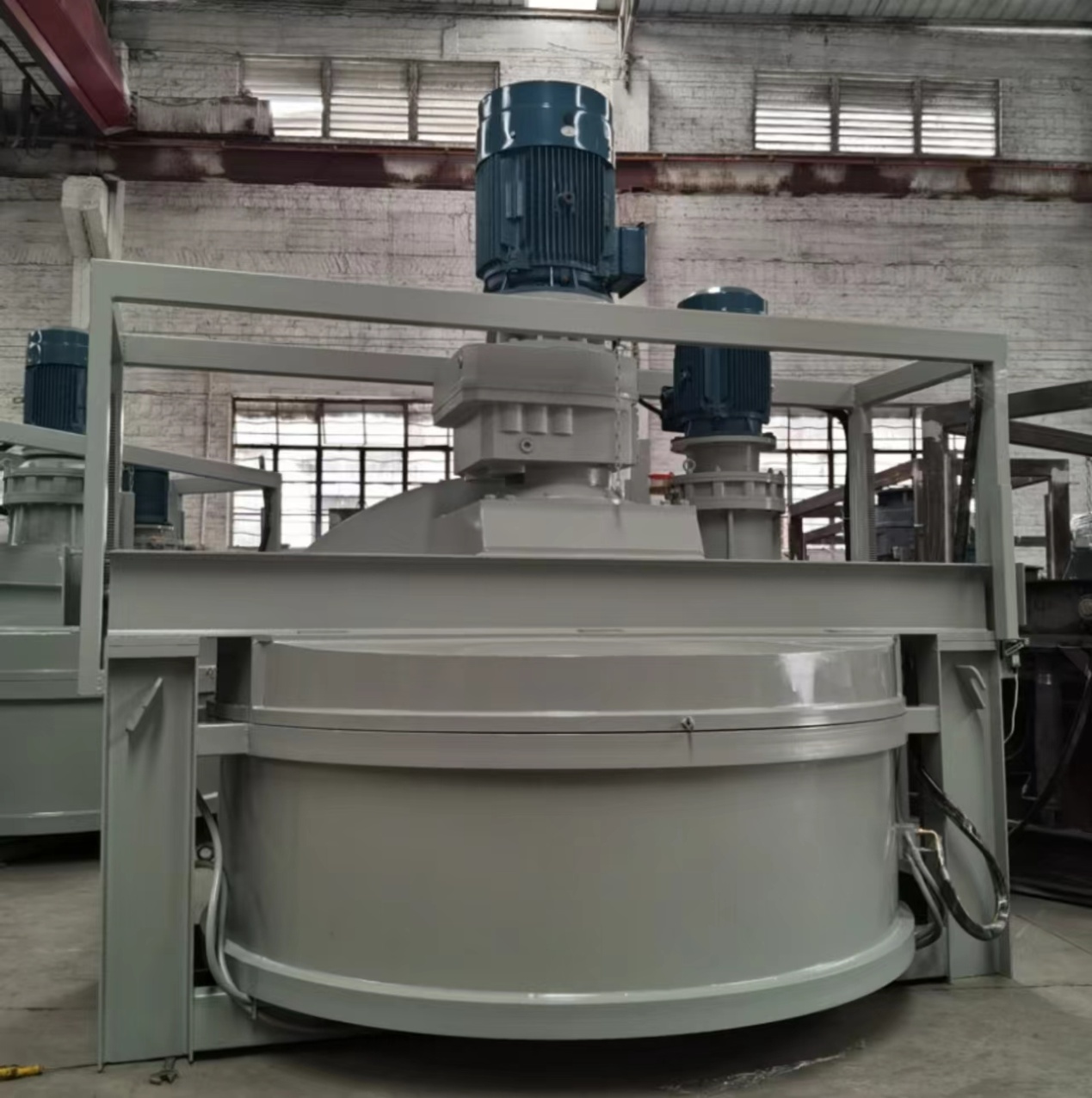

1. SY-2500型四盘双电机搅拌机配置明细如下：

1.SY-2500 Four-star dual motor mixer configurations details as follows:

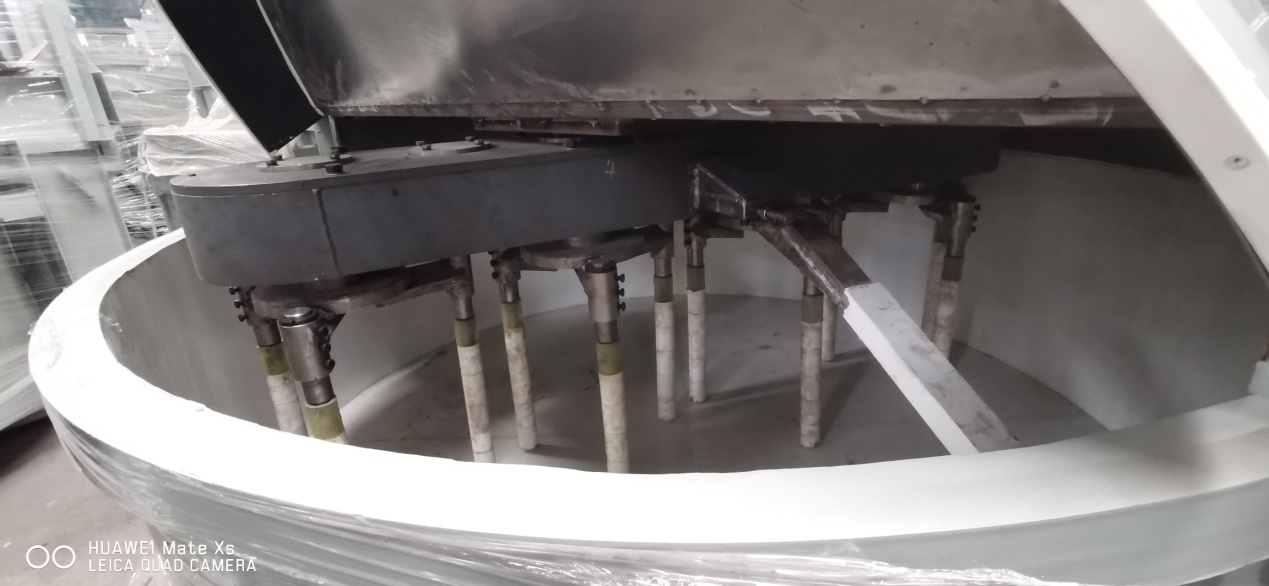

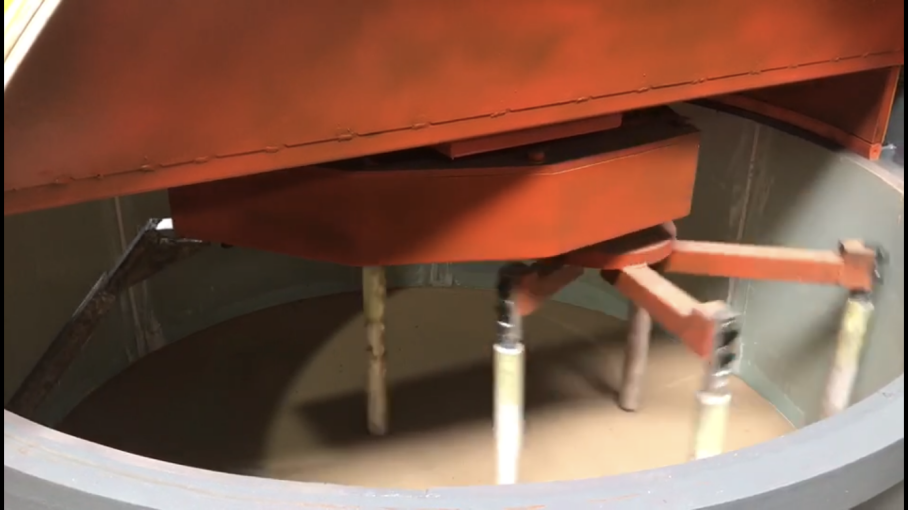

四盘双电机液压升降，桶高度在650mm，桶底，桶边贴好15mm厚微晶石，搅拌杆粘好刚玉（刚玉内径40mm，外径50mm），每台搅拌机里有10根搅拌杆1根斜刮边，另再配2根搅拌杆备用，易损件（油封，微晶石，开关旋钮）及因甲方原因（电机缺相减速机缺油等）造成的问题损坏不在保修范围内。

Four-star dual motor hydraulic lifting, with a barrel height of 650mm, 15mm thick nano glass lining on the bottom and sides, and corundum (inner diameter of corundum 40mm, outer diameter of 50mm) pasted on the mixing rod. Each mixer has 10 mixing rods, one with oblique scraping edges, and 2 additional mixing rods for backup. Vulnerable parts (oil seal, nano glass, switch knobs) and damage caused by the Buyer's reasons (motor phase shortage, reducer oil shortage, etc.) are not covered by the warranty.

SY-2500型四盘双电机搅拌机细节要求如下：

（1），罩子用304不锈钢两边翻盖，90度直角，加装观察口，桶底除下料口部分用铁皮美观封底，齿轮箱加气管吹灰。

（2），四盘齿轮箱退火，除锈处理，主传动入轴直径110mm，过度齿轴直径100mm，主传动齿轮厚度80mm，模数10模，材质40络，磨齿；副过度齿轴直径80mm，副传动齿轮厚度60mm，模数8模，材质40络。

（3），主电机4极45KW,副电机6级15KW;主减速机硬齿面RF147，副减速机摆线针B5安装尺寸，B6减速机,四盘输出150转，箱体公转22转。

SY-2500 four-star dual motor mixer details are as follows:

(1) The cover is made of 304 stainless steel with flip covers on both sides and a 90 degree right angle. An observation port is installed, and the bottom of the barrel is aesthetically sealed with iron sheet. The gearbox is equipped with a gas pipe for blowing dust.

(2) Four-star gearbox annealing, rust removal treatment, main transmission input shaft diameter 110mm, transition gear shaft diameter 100mm, main transmission gear thickness 80mm, module 10, material 40 mesh, gear grinding; The diameter of the secondary gear shaft is 80mm, the thickness of the secondary transmission gear is 60mm, the module is 8, and the material is 40 mesh.

1. Main motor is 4-pole 45KW, auxiliary motor 6-pole 15KW; The main reducer has a hard gear surface RF147, and the auxiliary reducer has a cycloidal pin B5 installation size. The B6 reducer has a four-star output of 150 revolutions per minute and a housing revolution of 22 revolutions per minute.
2. SY-2200型双盘双电机搅拌机配置明细如下：

2. SY-2200 Two -star dual motor mixer configurations details as follows:

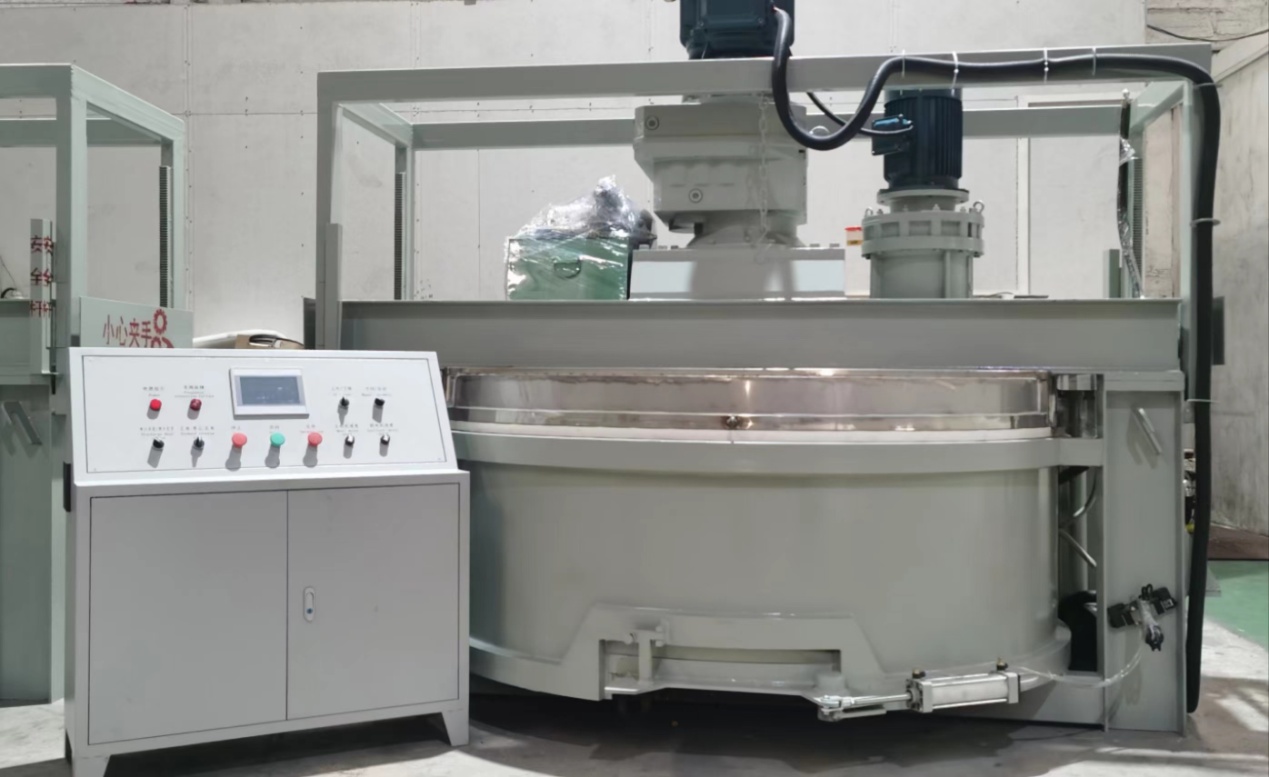

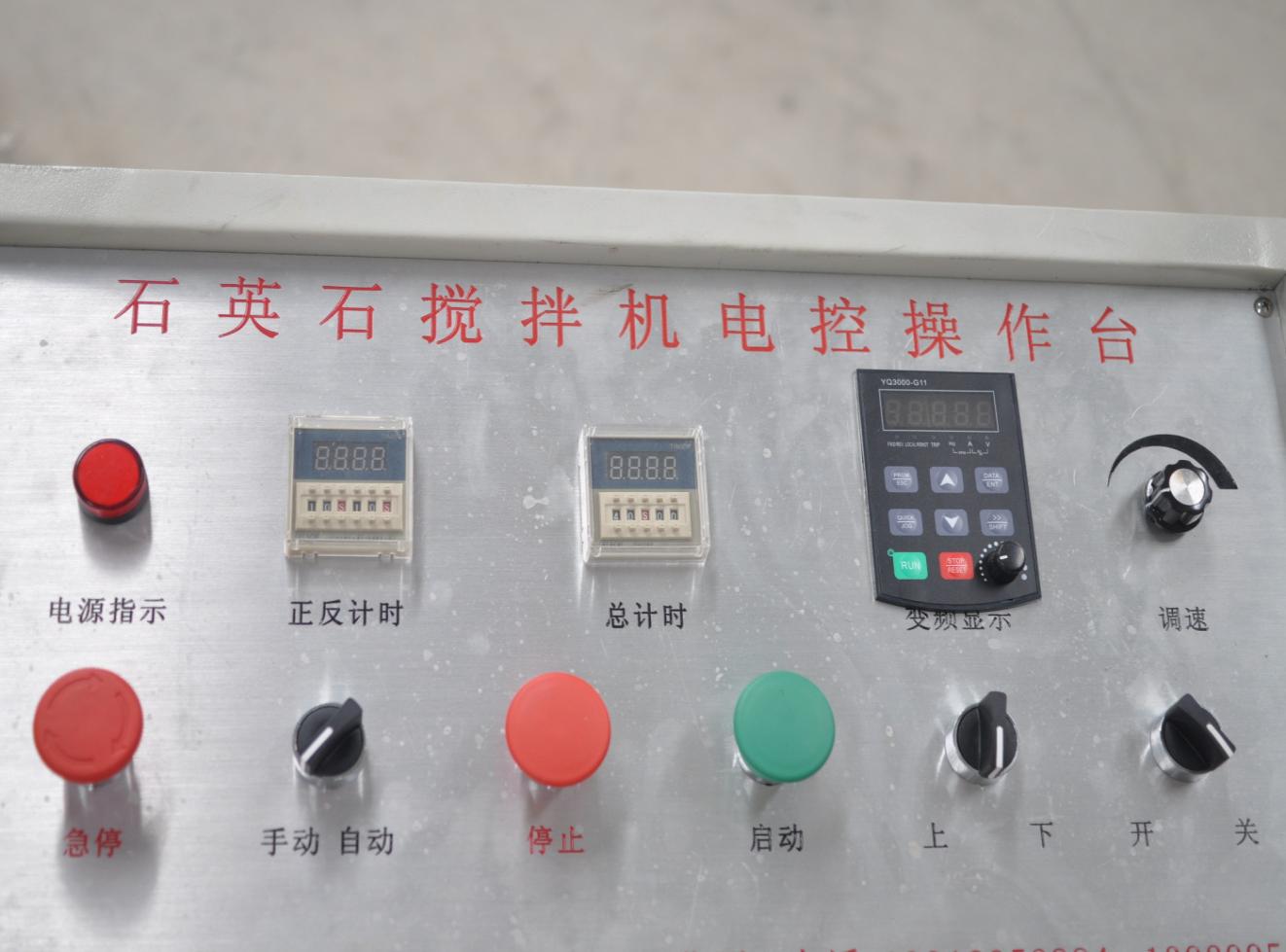

双盘双电机液压升降，桶高度在650mm，搅拌杆粘好刚玉，电控用到PLC+触摸屏控制，有正反转，手动/自动功能，搅拌杆为圆形，每台搅拌机里有12根搅拌杆1根斜刮边，另再配2根搅拌杆备用，易损件（油封，微晶石内衬，开关旋钮）及因甲方原因（电机缺相减速机缺油等）造成的问题损坏不在保修范围内。

Two-star dual motor hydraulic lifting, barrel height is 650mm, mixing rod is glued with corundum, electric control uses PLC+touch screen control, with forward and reverse, manual/automatic functions, mixing rod is circular, with 12 mixing rods in each mixer, 1 inclined scraping edge, and 2 additional mixing rods for backup, Vulnerable parts (oil seals, nano glass lining, switch knobs) and damages caused by The Buyer reasons (motor phase shortage, gearbox oil shortage, etc.) are not covered by the warranty.

3.SY-2000型双盘双电机搅拌机配置明细如下：

3.SY-2000 Two -star dual motor mixer configurations details as follows:

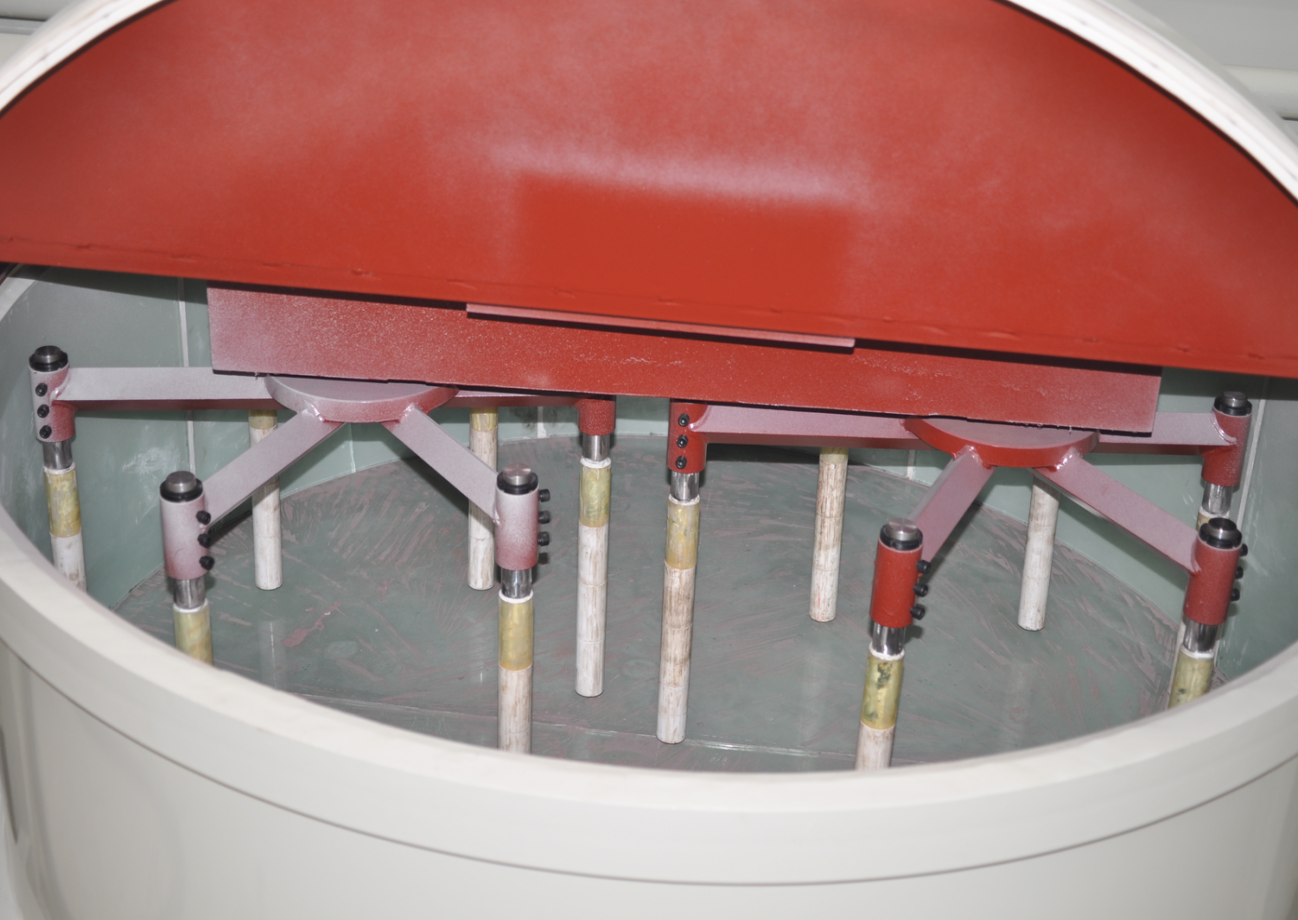

双盘双电机液压升降，内桶高度在600mm，桶底，桶边贴好15mm厚微晶石，搅拌杆粘好刚玉（刚玉内径35mm，外径45mm），搅拌杆为圆形，每台搅拌机里有12根搅拌杆1根斜刮边，另再配2根搅拌杆备用，易损件（油封，微晶石内衬，开关旋钮）及因甲方原因（电机缺相减速机缺油等）造成的问题损坏不在保修范围内。

SY-2000型双盘双电机搅拌机细节要求如下：

1. ，主电机4极30KW,副电机6级5.5KW;主减速机硬齿面RF147，副减速机摆线针B4安装尺寸，B5减速机,双盘输出120转，箱体公转15转。

Two-star dual motor hydraulic lifting, with an inner drum height of 600mm. 15mm thick nano glass are lining on the bottom and edge of the drum, and corundum (inner diameter of corundum is 35mm, outer diameter is 45mm) is pasted on the mixing rod. The mixing rod is circular, and each mixer has 12 mixing rods, one with an oblique scraping edge, and an additional 2 mixing rods for backup, Vulnerable parts (oil seals, nano glass lining, switch knobs) and damages caused by The Buyer reasons (motor phase shortage, gearbox oil shortage, etc.) are not covered by the warranty.

The SY-2000 Two-star dual motor mixer details are as follows:

(1) Main motor 4-pole 30KW, auxiliary motor 6-pole 5.5KW; The main reducer has a hard gear surface RF147, and the auxiliary reducer has a cycloidal pin B4 installation size. The B5 reducer has a dual disc output of 120 rpm and a housing revolution of 15 rpm.

1. SY-1800/1900型双盘双电机搅拌机配置明细如下：
2. SY-1800/1900 Two -star dual motor mixer configurations details as follows:

1. SY-1650型搅拌机配置明细如下：

5. SY-1650 mixer configurations details as follows:

1. SY-1500型搅拌机配置明细如下：

6. SY-1500 mixer configurations details as follows:

1. SY-1200型搅拌机配置明细如下：
2. SY-1200 mixer configurations details as follows:

1. SY-768型搅拌机配置明细如下：

8. SY-768 mixer configurations details as follows:

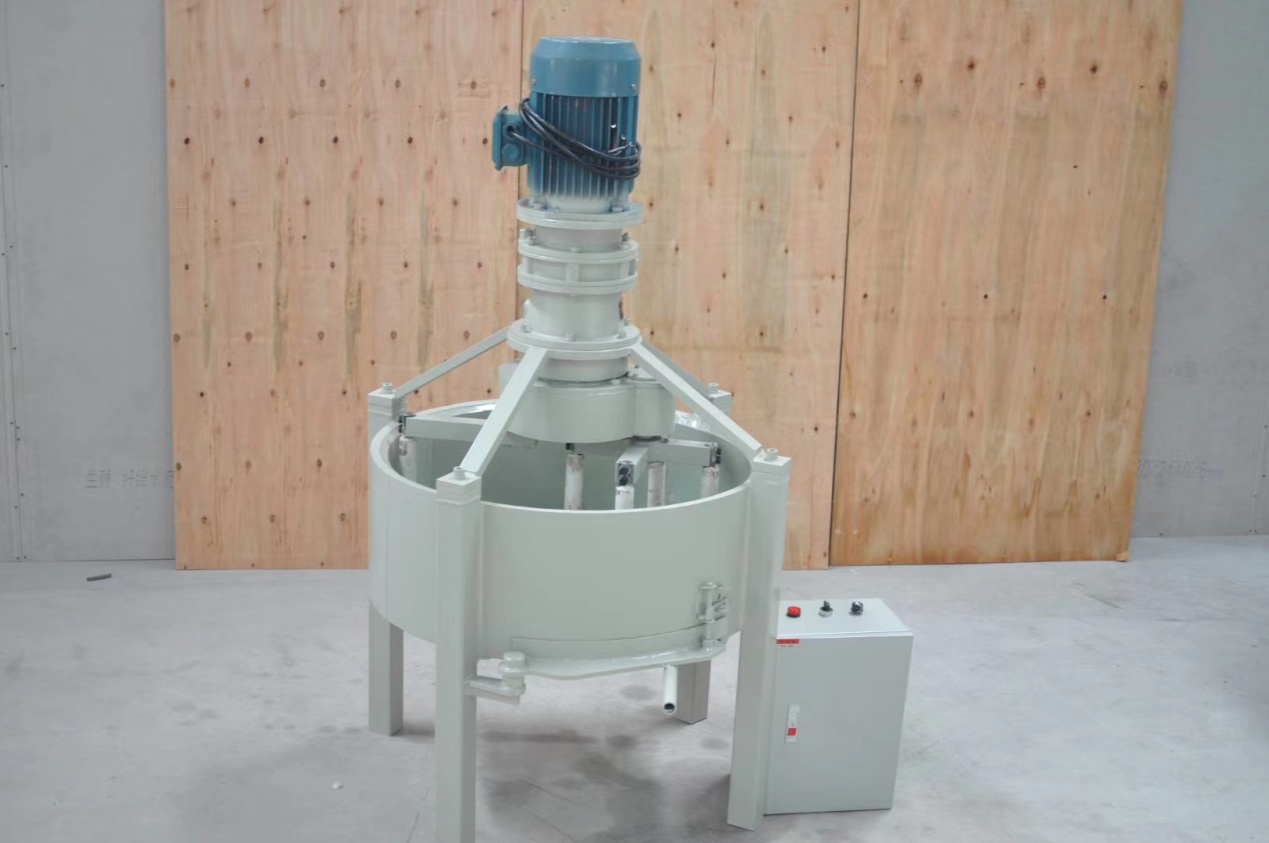

1. SY-610型单盘搅拌机配置明细如下：

9.SY-610 mixer configurations details as follows:

单盘单电机搅拌机配置，固定款，搅拌杆粘陶瓷，电控有正反转，每台搅拌机里有4根搅拌杆1根斜刮边，易损件（油封，玻璃内衬，开关旋钮）及因甲方原因（电机缺相减速机缺油等）造成的问题损坏不在保修范围内。

Single star single motor mixer configuration, fixed type, mixing rod with ceramic, electric control with forward and reverse rotation, each mixer has 4 mixing rods and 1 diagonal scraping edge, vulnerable parts (oil seal, glass lining, switch knob) and damage caused by Buyer's reasons (motor phase shortage, reducer oil shortage, etc.) are not covered by the warranty.
